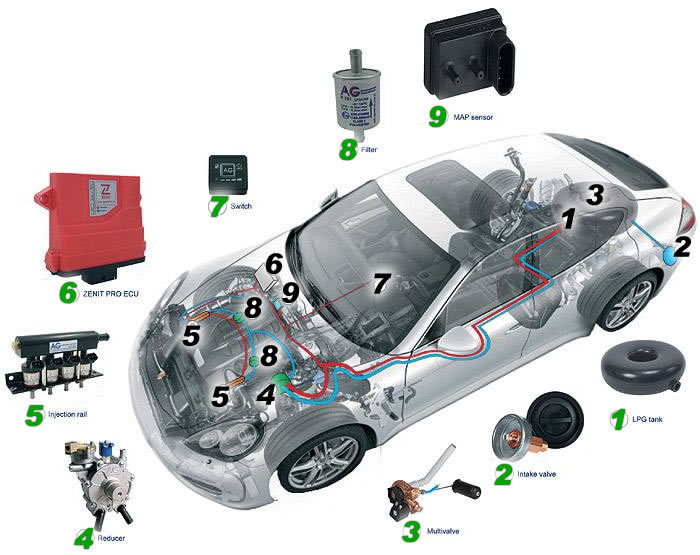

Safety is of utmost importance to Autogas. Here is a brief look
at the many safety features a typical system includes.
Click
on a number for more information.
| 1.
LPG Tank |
 |
Stako tanks - Crash Tested and with the following approvals and certifications,
ECE R67.01 UN, ECE R110 UN, ASME, GOST, Australian, Standard 3509, Indian Standard 14899, Korean Standard, 9723/EC, 99/36/EC.
Approved. |
| |
 |
View datasheet |
| 2.
Intake Valve |
 |
Antileak pressure resistant
shut off valve. |
| |
|
|
| 3.
Multivalve |
 |
Intake non return valve.
Manual supply shut off valve.
Pressure release valve.
LPG capacity controller full up to 80% to leave room for
expansion.
Mechanical magnetised LPG level meter.
Electronics supply cut off valve to switch off LPG supply
when engine is off and ignition is on.
Electronic supply cut off valve in full flow circumstances
(e.g. pipe failure). |
| |
 |
View datasheet |
| 4.
Reducer |
 |
Electronic LPG supply cut off |
| |
|
View datasheet |
| 5.
Injector Rail |
 |
HANA injectors have many merits
such as low noise, heat-resistance and the function of
selection each cylinder fuel quantity. Hana injectors
have much more less variation of fuel quantity and much
longer lasting use. Approved ECE R67, ECE R110 and Australian
certified. |
| |
 |
|
| 6.
ECU |
 |
Latest technology, OBD connection
for a continuous gas trim calibration, fully programmable
and mappable. Controls exact amount of fuel supply and
controls LPG supply electro valves. |
| |
 |
View datasheet |
| 7.
Switch |
 |
Switch with fuel level indicator. |
| |
|
|
| 8.
LPG filter |
 |
Steel pressure resistant LPG
filter. |
| |
|
|
| 9.
MAP Sensor |
 |
Measures manifold pressure
and send information to ECU. |
| |
|
|
| Warranties |
LPG Tank - 10 year warranty
Intake Valve, Multivalve, Reducer, Injector Rail, ECU, Switch, MAP Sensor - 2 year warranty
Pipes and Filters - no warranty |
| |
|
|
| Additional
Safety |
Extra Testing in VRT - Leak Test
Extra Tasks in vehicle service - Leak Test and LPG Filter no. 9 replacement.
Equipment used is the latest version of equipment by AG Centrum www.agcentrum.pl |
| |
|
|
|
|
|
Compared
with petrol and
diesel, LPG is the best
environmental alternative. |
|
|
